Traffic Light System LZA 500-PED

Portable pedestrian light system

Overview

  • Compact and handy design
  • Longer operating times due to low power consumption
  • Swivel heads - easy to turn away from the flow of traffic
  • Super lightweight and environmentally friendly
  • Uses latest Bluetooth technology

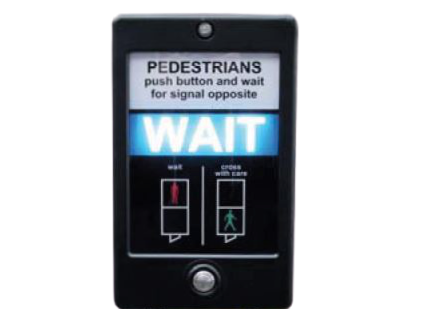

  • Request on demand
  • HA Type approved; TOPAS approved

Technical Data

Light source: 80 high power LEDs
Light colour: red, green
Max. light intensity: 380 cd red, 160 cd green
Av. power consumption (day/night): 0.2 A / 0.06 A
Av. power consumption standby: 40 mA
Operating voltage: 12V
Operating rime: with rechargeable battery: 12 V, 180 Ah: 550 hrs
with rechargeable battery: 12 V, 230 Ah: 700 hrs
Height lifted: 2839 mm
Height lowered: 1440 mm

Options

Products and Accessories Ref. No.
LZA 500-PED 145565-002
Battery box 245335-13-02
Niko key 070090-3
